Top Feed Fuel Rail v2 (SR20) "S13, 180sx"

Looking to run top feed injectors on your S13/180sx SR20? Then look no further.

Our kit is designed to run 14mm 3/4 Length Injectors or 14mm Full length injectors*. This allows you to run large range of top feed injectors.

Use the drop down box to select fuel rail only or Genuine Bosch 495cc, 731cc, 980cc, or 1650cc. All injectors are E85 compatible.

Features:

• Machined from 6061-T6 Aluminum
• Anodised gloss black or silver to not only prevent corrosion but it looks great too!
• Supplied with both AN8 and AN6 fittings allows you to choose what size fuel lines suit your application.
• AN6 Fuel Pusle Damper Port (Fuel pulse damper sold seperately)
• AN6 Center Return Port

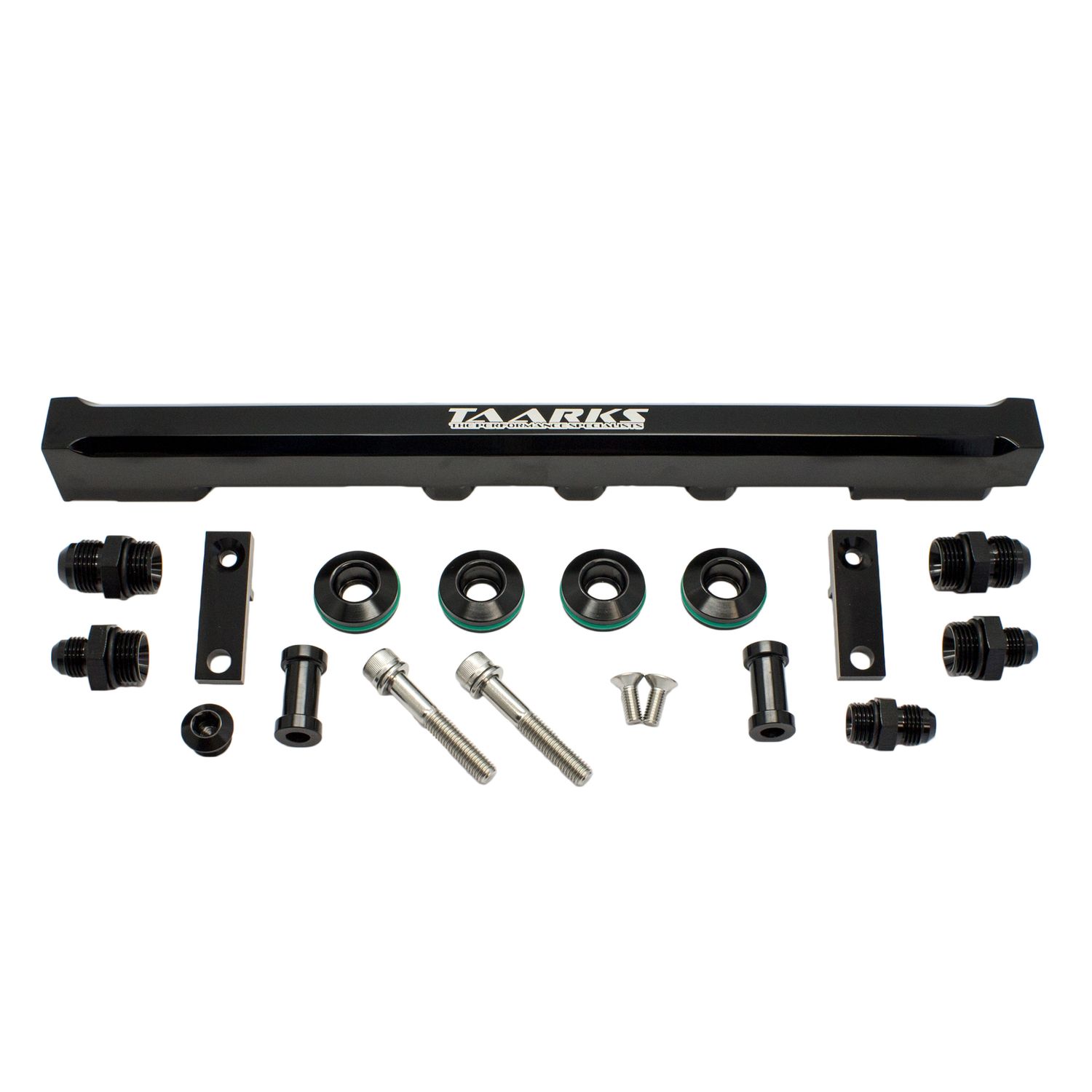

Kit includes:

• Your choice of injectors or no injectors ( Matching Electrical Connector are supplied when purchased with injectors )
• 1x Fuel Rail
• 4x Intake Manifold Adapters
• 2x AN8 Fittings
• 2x AN6 Fittings
• 1x AN6 Return Fitting
• 2x AN6 Block Off Plug
• 4x Fuel Rail Spacers
• 4x Stainless Steel Bolts and Spring Washers

Application:
S13 Silvia (SR20DE)
S13 Silvia (SR20DET)
RPS13 180sx (SR20DE)
RPS13 180sx (SR20DET)

Notes:
*3/4 Length injectors are recommended as some gearbox conversions and engine mounts will cause the fuel rail to hit the bonnet when using full length injectors.

**Our kit will work with the standard intake and also the older style GReddy intake manifolds that use the standard fuel rail.
