Tomei 1JZ/2JZ Oil Pan Sump Baffle
$369.00
Price incl. GST (10%) $33.55
Options
Please choose
In stock
Product Details

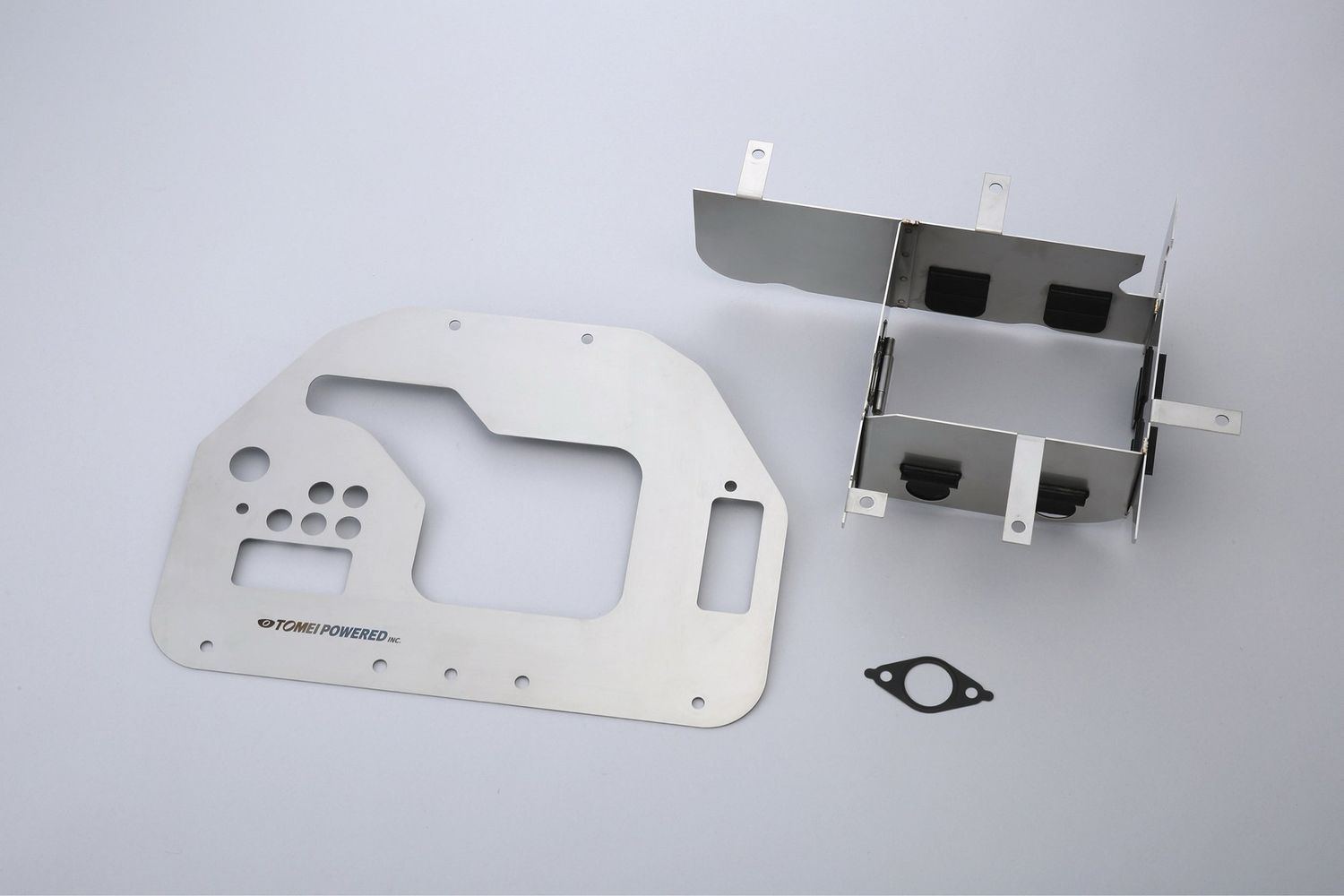

Tomei - 1JZ/2JZ Oil Pan Baffle
Protects the engine under the strong G-force on track!
During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine.
The TOMEI baffle plate is designed to prevent this problem from happening especially when the car is used for competition use.
| TYPE | APPLICATION | P/N | Engine | NOTE | |
|---|---|---|---|---|---|
| TYPE F1 | JZS161/JZX110/JZX110W JZS171/JZS171W |
194005 | 1JZ-GTE/2JZ-GTE | This product has been designed to fit Toyota P/N:12102-46040 (OIL PAN NO.2) and P/N: 15104-46070 (STRAINER ASSY) only. （※This product only fits front sump models.） |
|
| TYPE F2 | JZS147/JZX100/JZX90 | 194008 | 1JZ-GTE/2JZ-GTE | This product has been designed to fit Toyota P/N:12102-46011 (OIL PAN NO.2) and P/N: 15104-46060 (STRAINER ASSY) only. （※This product only fits front sump models.） |
|
| TYPE R | JZA80/JZZ30 | 194009 | 1JZ-GTE/2JZ-GTE | This product has been designed to fit Toyota P/N:12102-46031 (OIL PAN NO.2) and P/N: 15104-46030 (STRAINER ASSY) only. （※This product only fits Rear sump models.） |
|
*Make sure the oil pan and oil strainer you are installing this product with are the right application prior to the installation.
*The Lower Baffle of this kit will interfere with the oil level sensor float. Please note that this product has been designed to use without the oil level sensor.
