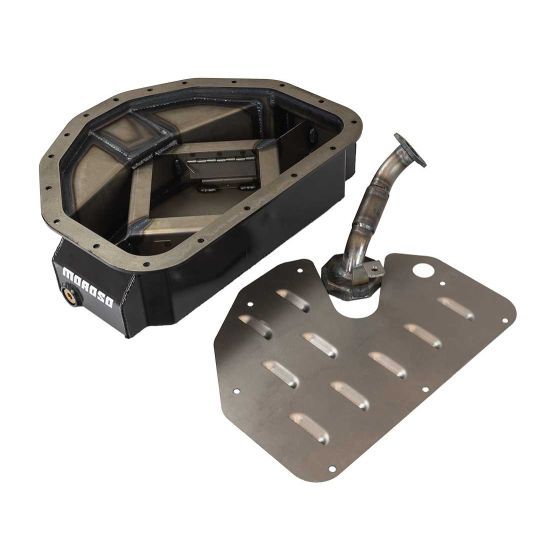

MOROSO OIL PAN, TOYOTA, 1JZ, 2JZ, FRONT SUMP, ROAD RACE BAFFLE, STEEL

Steel, Wet Sump, 4" Deep, 7-9/16" Long, 16" Wide, 6 Quart Capacity (Plus Filter)

Engine Applications: Toyota 1JZ-GE/1JZ-GTE & 2JZ-GE/2JZ-GTE, Dart 2JZ Iron Eagle, etc.

Fits; Most Toyota JZ-Equipped Chassis Requiring Front Sump (Other applications check dimensions for fitment)

• Fully fabricated steel lower oil pan with laser cut rail
• Four integrated trap doors for superior oil control
• Includes heavy duty high flow pick up* and louvered anti-slosh baffle
• Compatible with OEM Toyota cast upper pans
• Black powder coat finish by Moroso Powder Coating
• -8AN magnetic drain plug with O-ring seal
• Compatible with JZ-equipped chassis such as Toyota JZX90/JZX100/JZX110, Altezza/IS300, GS300 and JZ-swapped applications requiring a front sump pan (check dimensions)

*Moroso Front Sump JZ oil pan is 4" deep and designed to be used with the included oil pick up. OEM pick ups from shallower JZX-style pans (around 3" deep) are not recommended.
