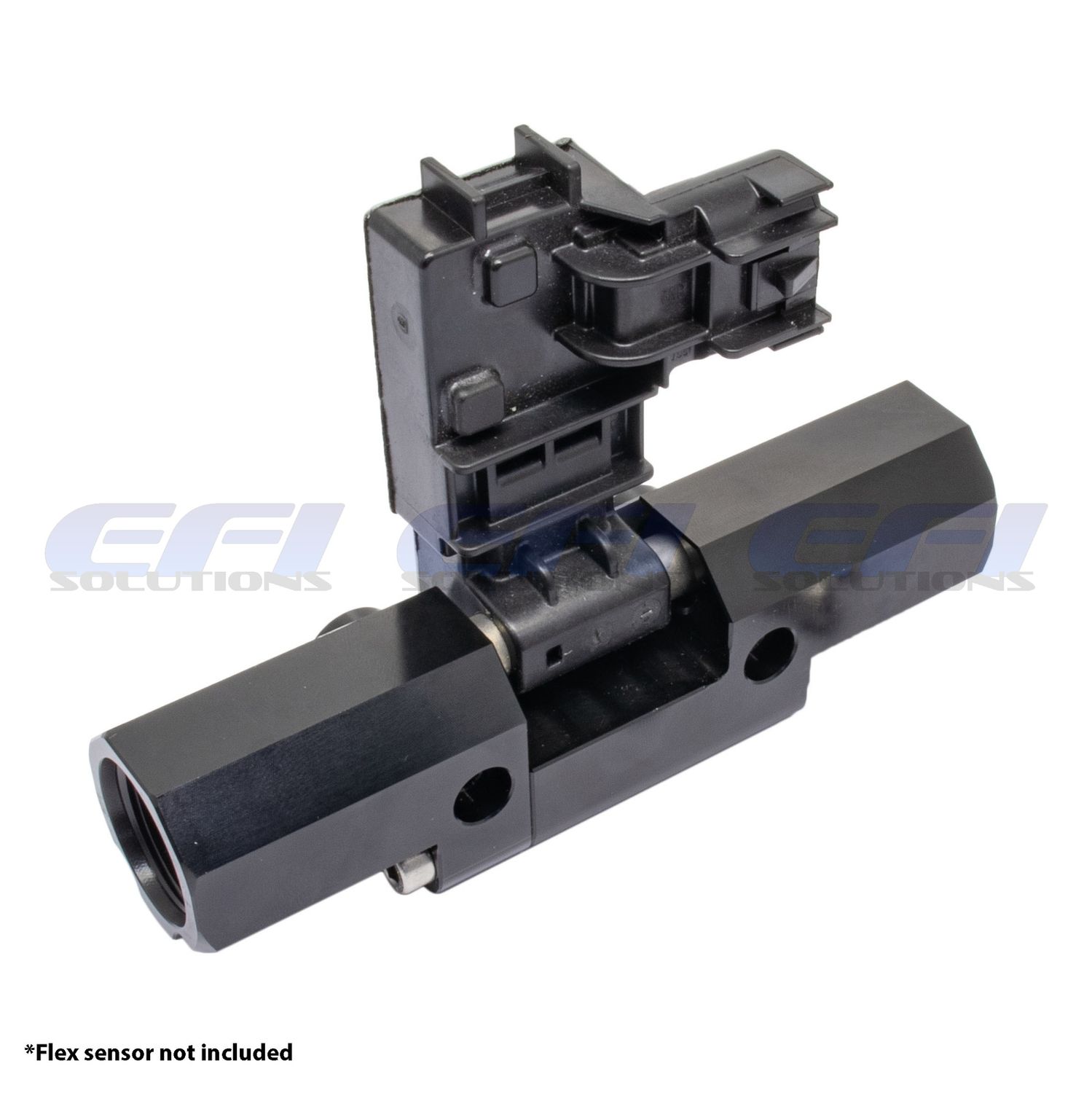

Flex Fuel Sensor Bypass Bracket / Mount (AN10)

TAARKS Flex Fuel Sensor Bypass Bracket / Mount (AN10)

This kit works with the continental E85 Flex Fuel sensors allowing the sensor to flow more fuel without causing a restriction.

Total length (not including fittings): 133mm
Mouting bolt spacing: 48mm (center to center)

Features:

• Anodised black
• AN10 ORB Ports
• O-Ring sealed
• M5 Mounting Points
• 1/8" NPT Sensor Port
• Smooth transitions for flow
• Stainless Steel Hardware
• Machined from 6061-T6 Aluminium

Compatible with the following flex sensors:
VDO Continental SE1004S
Haltech HT-011000
Link 101-0034
Innovate 3907

Aeroflow AF49-1555

Zeitronix FLEX-FUEL-S

FuelTech 5005100353

Raceworks FSA-023
