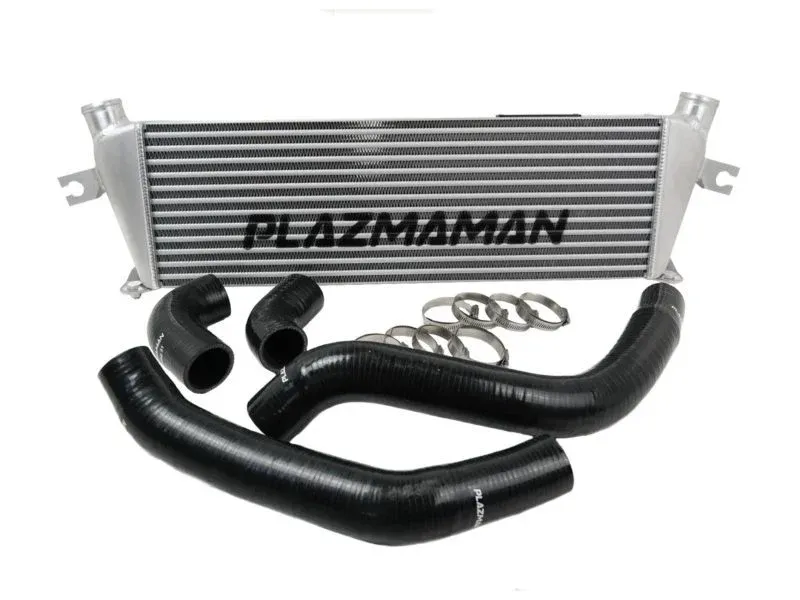

Plazmaman Dmax MY12-MY15.5 Intercooler kit (Black Turbo Hose Style)

*** THIS KIT SUITS THE "BLACK TURBO STYLE HOSE" ENGINE (NOT RED HOSE) **

Plazmaman Dmax MY12- 15.5 model bolt on replacement performance intercooler kit .

Featuring a premium quality HIGH FLOW 665 x220 x 63mm Lightweight tube and fin Intercooler core that is designed specifically for the high demands of the diesel engine. Increased Internal core fin structure and added core thickness has effectively increased surface area by up to 70% over the standard factory item. This allows for larger boost increases and much better controlled EGTs, especially when towing large trailers. The intercooler itself is a direct no-fuss bolt in item and is compatible with all after market Bull bars and winches. High quality larger diameter piping also is supplied to aid air flow to the engine.

Our testing has shown a 8-12 deg rise above ambient temperature (26 degree day) across the whole rpm range. On road tow testing resulted in 16 approx deg above ambient range This is a massive improvement considering the OEM ranger Intercooler was showing temperatures well above 70+ deg.

Unfortunately, this intercooler will not suit later model 2016+ RED TUBRO HOSE STYLE engines.

SUPPLIED :

• 665x220x63mm tube and fin Intercooler - quality Plazmaman Intercooler
• Reinforced Oil resistant Cold Side hose
• Reinforced Oil resistant Hot Side hose
• Hose clamps

The Intercooler is available in raw or stealth black finish.
