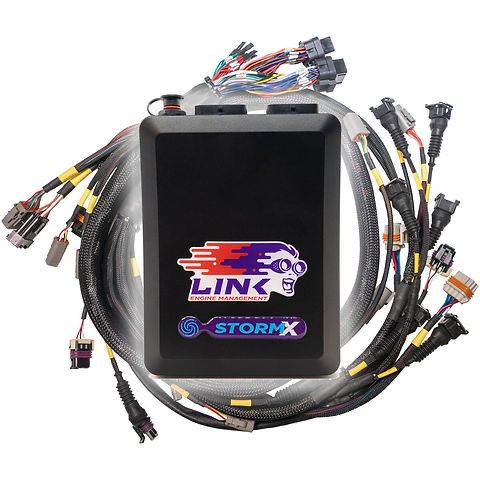

LINK G4X StormX ECU + Terminated LS Engine Harness Drive-by-Cable Bundle

SKU 108-9000B

G4X StormX ECU + Terminated LS Engine Harness Drive-by-Cable Bundle


The quickest, easiest, tidiest and most cost effective way to connect a Link ECU to your Drive-by-Cable LS V8 engine.


Bundle Includes:
G4X StormX ECU (8 x Injector and 8 x Ignition Drives)
Terminated Engine Harness GM LS GEN3/4*
LS Stepper Adapter Harness


*Notes for use with Gen 4 Engines
A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for details.
Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness)


PCLink MAP Files
Gen3 Cable Throttle Base Map for G4X XtremeX/StormX
Gen4 Cable Throttle Base Map for G4X XtremeX/StormX
