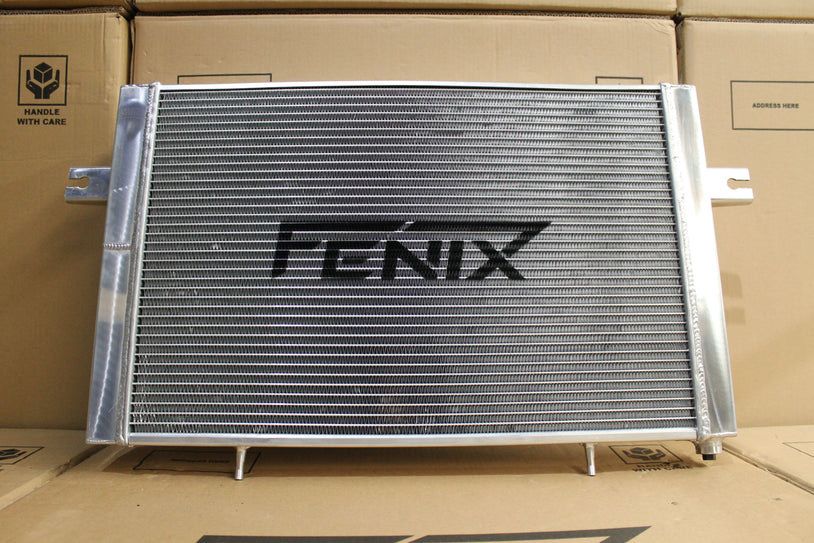

Fenix Nissan Silvia S14 S15 1JZ 2JZ RB LS Full Alloy Conversion Radiator (Tucked)

Fenix Part No: FTS0003-FA56M.

Core Size: 578 x 378 x 56mm.

This radiator is designed to fit into a S14-S15 chassis with no trimming required, & utilizes the factory mounting points for the lower pins. Rubber bushes will be supplied for the side brackets.

The factory A/C condenser will need to be removed to clear this radiator, in return this radiator will give you greater clearance for plenum / throttle body combinations & also more room to run a fan & shroud.

Outlets are positioned both on the driver side to be compatible for JZ, RB & LS series engines. A GEN II 1/8" NPT temp sensor provision & billet drain plug are now standard.
