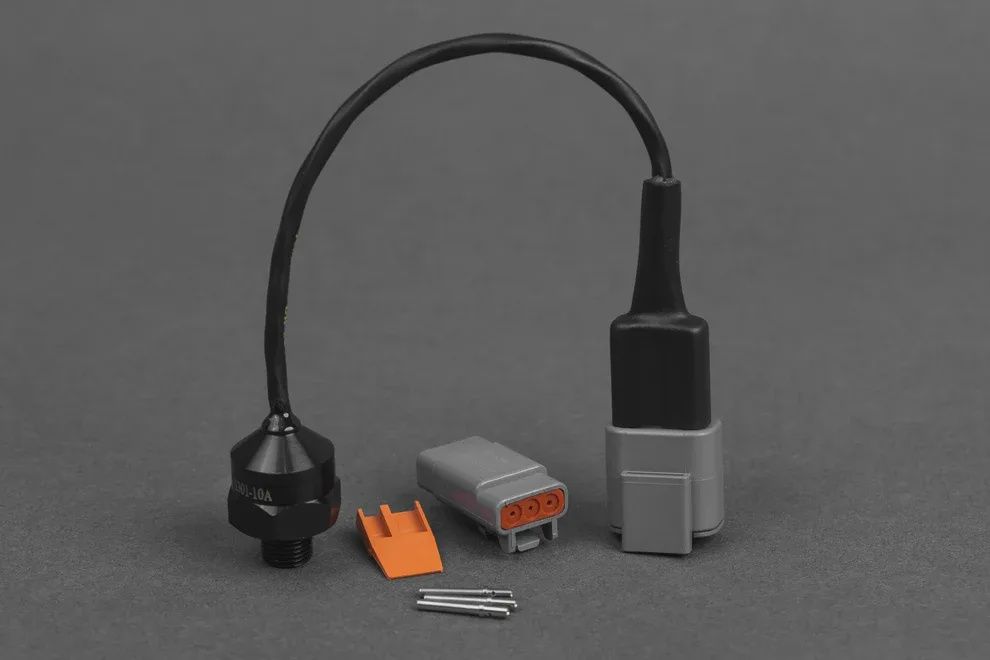

Emtron 1.0 Bar MAP Sensor Kit

SKU 1301-10A

The Emtron 1.0 Bar MAP Sensor uses a state-of-the-art piezoresistive transducer from NXP Semiconductors. It is highly accurate, providing a high level analog output signal that is proportional to the applied pressure.

• Genuine NXP Sensor
• Pressure Range: 15kPa to 115kPa
• Supply Voltage: 4.75 to 5.25 Volts DC
• Current Supply 6.0mA
• Protective Silicone Gel prevents sensor damage from airborne contaminates like oil, petrol and methanol.
• Fully calibrated and temperature compensated from -40 DegC to +125 DegC
• Response time 1ms
• Compact Design
• Stainless Steel 303 body for durability then coated in black nickel for superior abrasion resistance
• Fully potted for a waterproof seal and resistance to shock and vibration
• 1/8 NPT Thread
• Deutsch 3 Way Connector (mating end also supplied)
