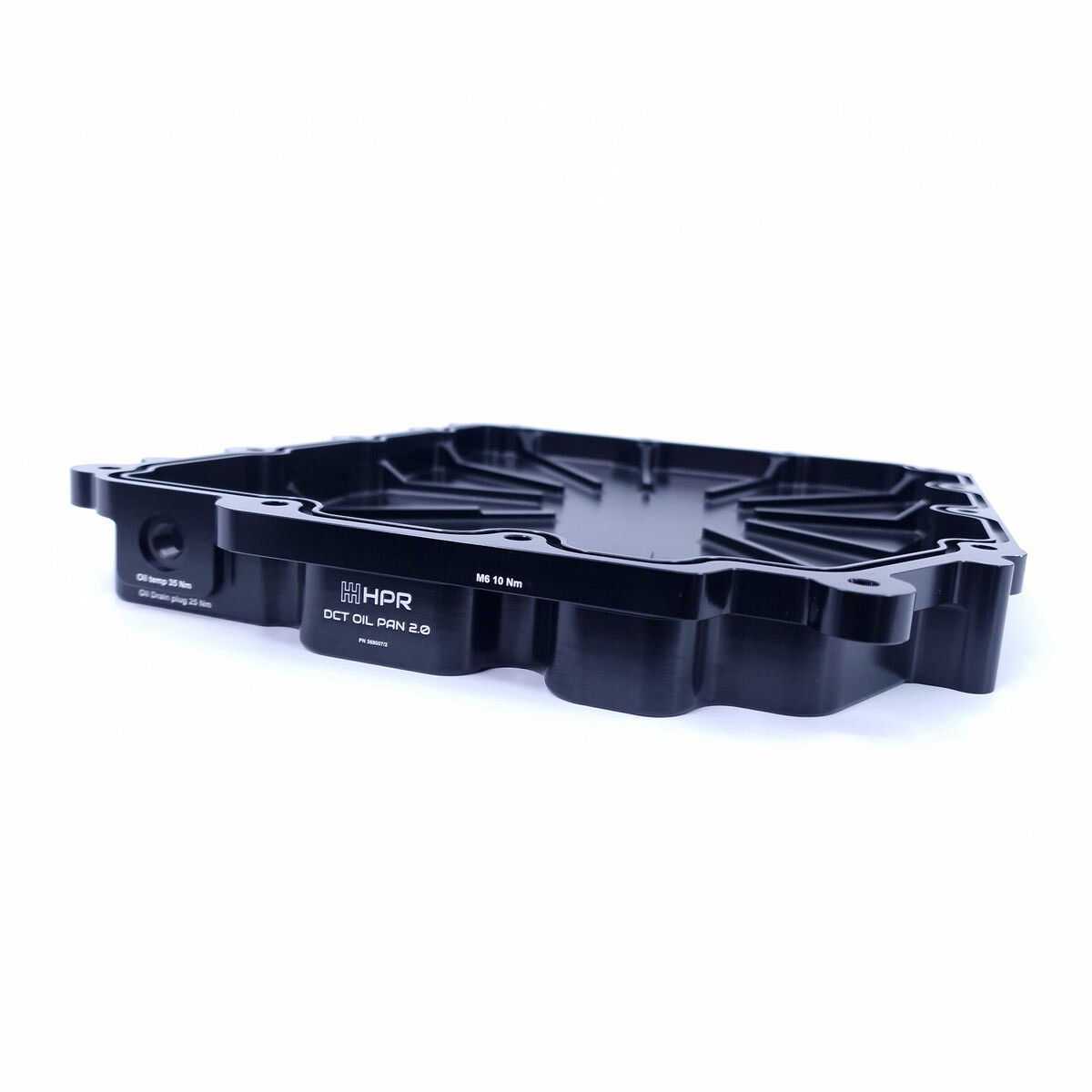

DCT OIL PAN KIT 2.0

HPR DCT oil pan kit Rev 2.0

A billet oil pan for customers seeking the best for their DCT transmission.
The leaking OE gasket design have been replaced with a o-ring for a 100% leak free solution.

We have managed to squeeze out every inside corner to achieve a massive 40% oil volume increase without sacrificing height.

A stainless steel heat shield is now included with the pan kit. This shield can be installed on both sides of the pan depending on where you have the exhaust.

Features

• CNC machined out of 6061 aluminum, anodized black.
• Hold 40% more oil over the stock pan.
• Integrated baffle design for improved oil control
• Low profile design, only 3mm deeper than the stock pan.
• Fits in all OEM applications.
• Additional oil temp sensor port M10x1mm
• Stainless steel heat shield that can be installed on both sides of the pan.
• Laser printed torque specs
• Designed for maximum durability with extra material for both the flange and bottom structure.
• Serrated surface for increased surface area and better cooling.

The kit comes with

• Billet DCT sump with o-ring and ss bolts (A4/80)
• Flanged stainless steel oil drain plug
• Hardware for oem magnet install
• SS heat shield with teflon washers and SS hardware
