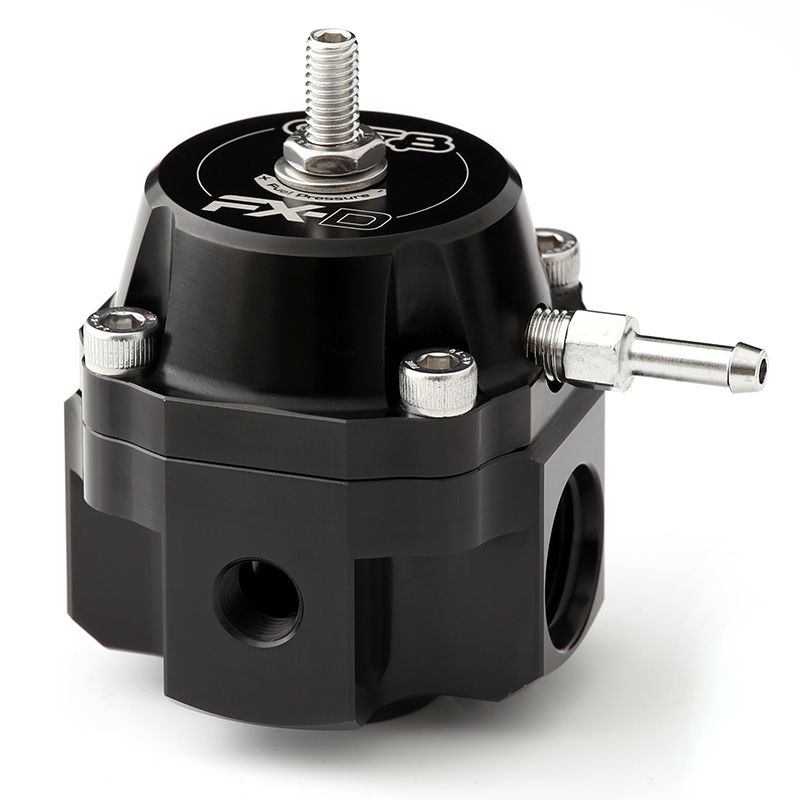

FX-D Low Pressure Fuel Regulator 8070-LP(-8AN Ports)

The GFB FX-D is a low pressure bypass type regulator intended for use on carburetors that are fed by an EFI type pump.

FX-D LOW PRESSURE FUEL REGULATOR FEATURES:

• 2x -8AN inlet port, 2x 1/8” NPT pressure gauge/sensor ports, and 1x -8AN return port
• Adjustable from 2-10psi
• Flows 1900 LPH @7psi
• Double layer/double reinforced diaphragms with a burst strength exceeding 500psi
• Teflon co-polymer seat with spherical stainless valve to retain fuel pressure longer after shut down
• Pressure reference port for blow-through boosted applications
• Completely serviceable
