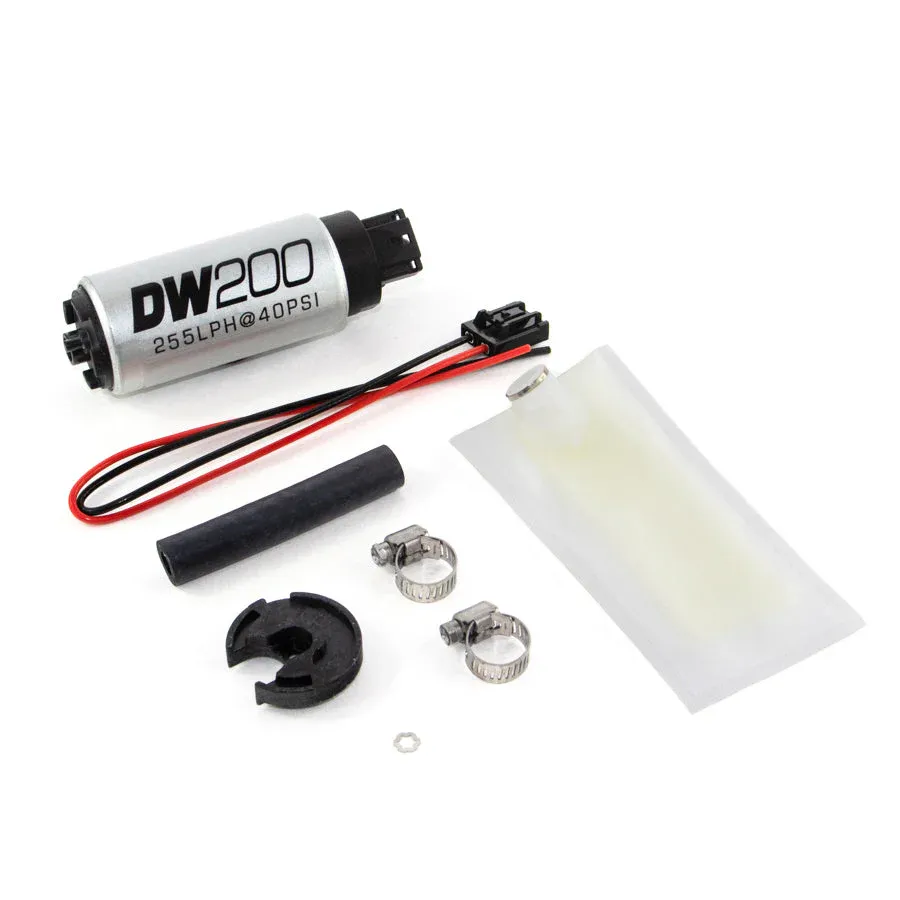

Deatschwerks 255lph in-tank fuel pump

The DW200 fuel pump has been specifically designed and tested for compatibility with gasoline and ethanol. DeatschWerks products are manufactured and sold for non-road vehicles used solely for competition.

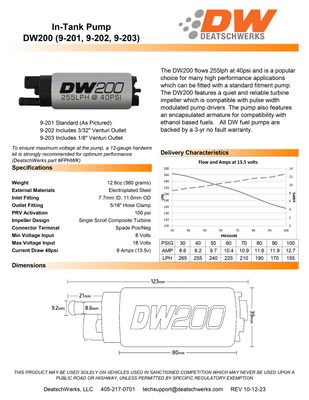

Flow Data

DW200 at 13.5 volts

Flow Data Notes:

• Displayed data represents a 10 pump average of results collected in-house.
• Every fuel pump is tested by DeatschWerks to be within specifications for flow, PRV activation, and amperage draw
• BHP horsepower figures are for approximation only and can vary significantly depending on your set-up.

Mechanical Specs

• Weight - 12.6oz (360grams)
• External Materials - Electroplated steel
• Inlet Fitting - 7.7mm ID, 11.0mm OD
• Outlet Fitting - 5/16" hose clamp
• PRV Activation - 100psi
• Impeller Design - Single Scroll Composite Turbine

Electrical Specs

• Connector Terminal - Spade pos/neg
• Min Voltage Input - 6 volts
• Max Voltage Input - 18 volts

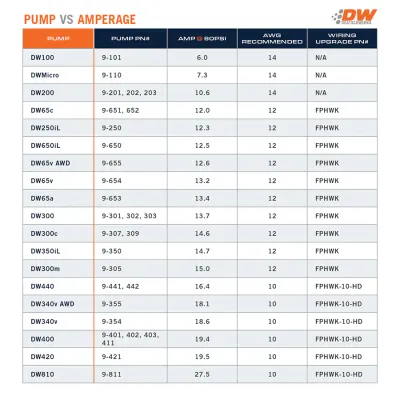

• Current Draw (40 psi) - 9 amps (13.5v)
• Current Draw (80 psi) - 12 amps (13.5v)
