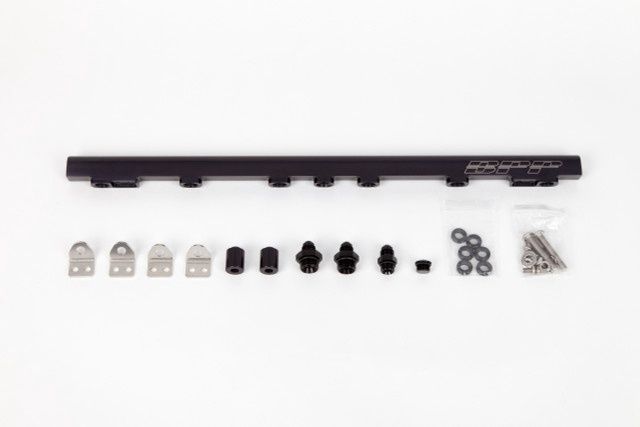

BPP Toyota 1JZ-GTE VVTi Fuel Rail Kit

Billet Performance Products have developed a direct bolt on fuel rail kit for the Toyota 1JZ-GTE VVTi.

The kit is designed for the JZX100 VVTi engine. It will bolt up to the JZX110 but there will be clearance issues if using the factory drive by wire throttle body.

The kit is designed to suit 14mm top feed injectors.

The kit comes with all adaptors to fit the following injector sizes:

EV1/EV6L/EV14 with 14mm Adaptors (60.7mm) eg ID1000/ID725 or Bosch 1000cc, 725cc, 550cc with adaptors.

The fuel rail is CNC machined from 6061-T6 billet aluminum, with a full 16mm ID through bore the fuel rail is designed to support all HP Levels

Each fuel rail kit has been coated with type II bright dip anodized finish in either Red, Blue, Black or Purple that looks great and protects against corrosion.

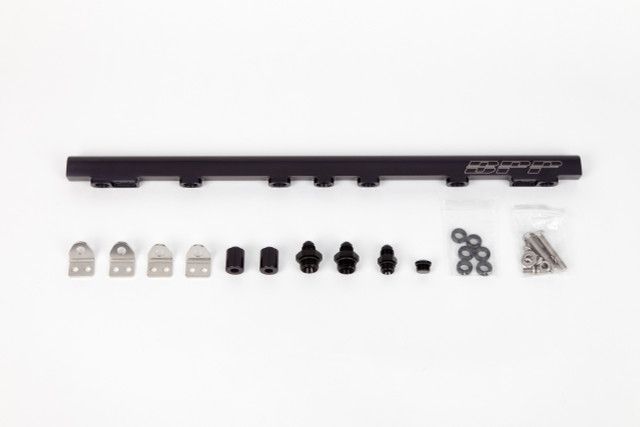

Each kit comes complete with o-ring seal injector to manifold adaptors and all parts needed to fit the fuel rail kit straight to the vehicle.

Each Billet Performance Products fuel rail is machined to suit -8 O-ring seals on each end and a -6 centre return for positive leak free operation.

Fittings are also supplied with the kit including a -6 block off if centre return is not to be used.
