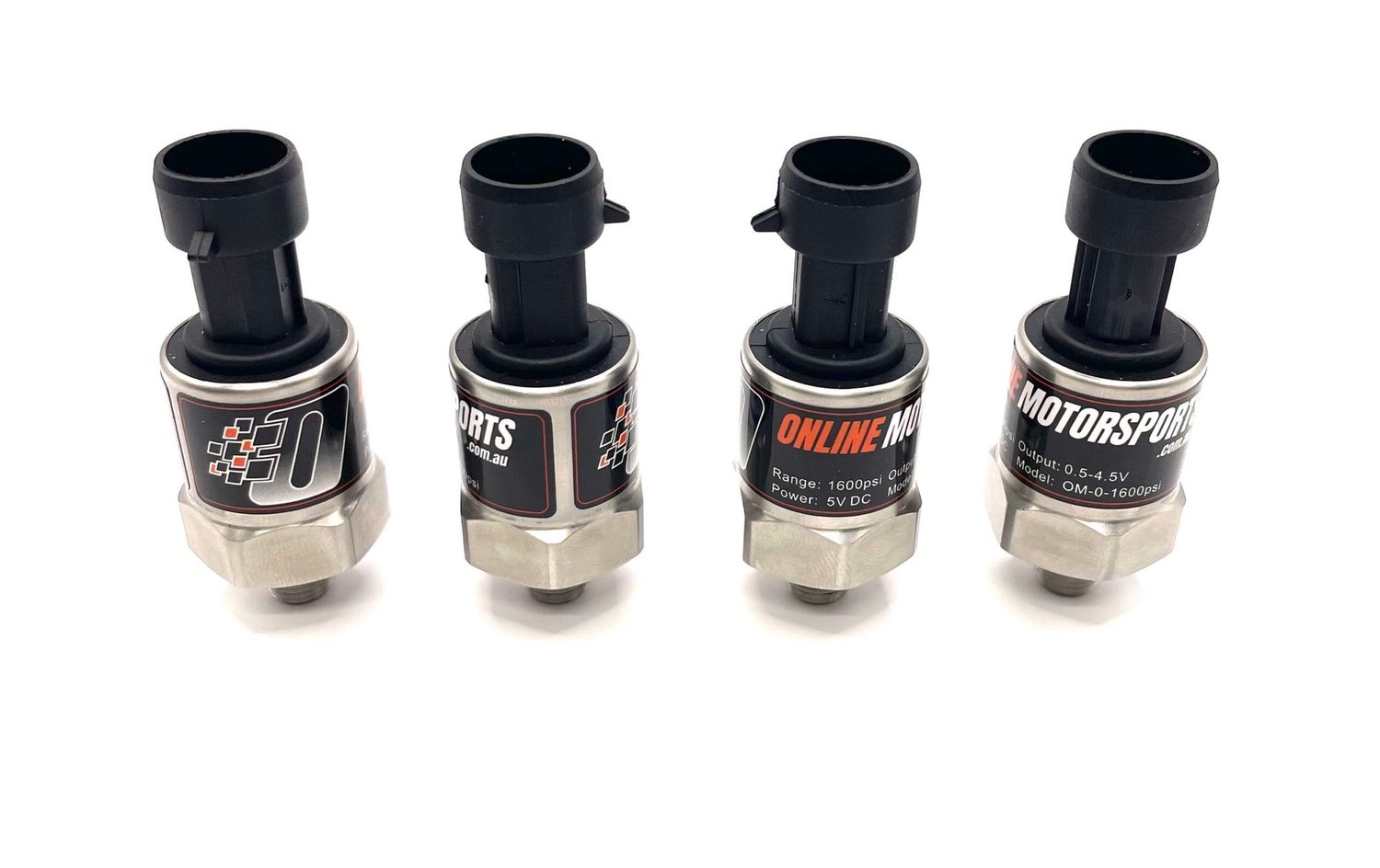

Pressure Sensors

Our pressure sensors have been specifically designed for the harsh motorsports arena. Each sensor contains a microchip that is individually designed for that pressure range giving 0.5% accuracy with fast and highly stable readings. This microchip is then set in diffused silicon oil. This protects the microchip from vibration. Our sensors have full one piece stainless steel bodies and are shock and vibration resistant unlike all cheap ceramic chipped sensors. Add our 90 degree and straight rubber boot for a neat weatherproof install.

-Stainless steel bodies.

-0.5-4.5V.

-0.5% accuracy.

-1/8” NPT thread.

-GT150 Packard connector with grommets and 4 pins included (1 extra in case your mate stuffs it up).

-Compatible with all data loggers and EFI systems.

-Calibration chart included.

-12 months limited warranty.

Specifications

OM-2-Bar. Typical uses: Map sensor, crank case pressure with vac pumps, naturally aspirated or N2o combos. Measures from -14.5 to + 14.5 PSI. -1 to +1 bar.

OM-3-Bar. Typical uses: Map sensor, crank case pressure with vac pumps. Measures from -14.5 to + 29 PSI. -1 to +2 bar.

OM-4-Bar. -14.5 to 43.5 PSI. -1 to +3 bar.

OM-5-Bar. -14.5 to 58 PSI. -1 to + 4 bar.

OM-6-Bar. -14.5 to 72.5 PSI. -1 to + 5 bar.

OM-8-Bar. -14.5 to 101.5 PSI. -1 to + 7 bar.

OM-10-Bar. -14.5 to 130.5 PSI. -1 to + 9 bar.

OM-0-15 psi. Common uses: carb fuel pressure, coolant pressure

OM-0-25 psi. Common use: Coolant and carb fuel pressure.

OM-0-50 psi. Common use: Coolant and carb fuel pressure.

OM-0-75 psi. Common use: Coolant and carb fuel pressure.

OM-0-100 psi. Common use: Fuel, coolant, oil, back and dome pressure.

OM-0-150 psi. Common uses: fuel, oil coolant and back pressure.

OM-0-200 psi. Common use: Trans pressure.

OM-0-300 psi. Common use: Trans pressure.

OM-0-500 psi. Common use: Trans Pressure.

OM-0-1600 psi. Common uses: Nitrous bottle or brake pressure.

OM-0-3000 psi. Common use: Trans and brake pressure.

OM-0-5000 psi. Common use: Trans pressure.

Information

Note: Sensors should not be mounted directly to the engine block, fuel rail or pump. Always use a flexible hose between.

Bulk trade orders welcomed.

12 months limited warranty.
